3PE Closed-Type Heat Shrink Sleeves For Pipe Joint Coating
| Place of Origin | China |
|---|---|
| Brand Name | FOREVER |
| Certification | ISO |
| Model Number | open-type |
| Minimum Order Quantity | 1 ton |
| Delivery Time | 8 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 5000 sets/week |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Materials | HDPE | Adhesive | Hot Melt Adhesive |
|---|---|---|---|
| Type | 3LPE | Backing | Radiation Crosslinking HDPE |
| Fuction | Joint Corrosion Protection | Thickness | 2.0mm,2.5mm,2.8mm |
| Width | 450mm,500mm,550mm,600mm | Core Features | Heat Shrink |
| Standard | EN12068 | Matched | Closure Patch And Epoxy Primer |
Product Description

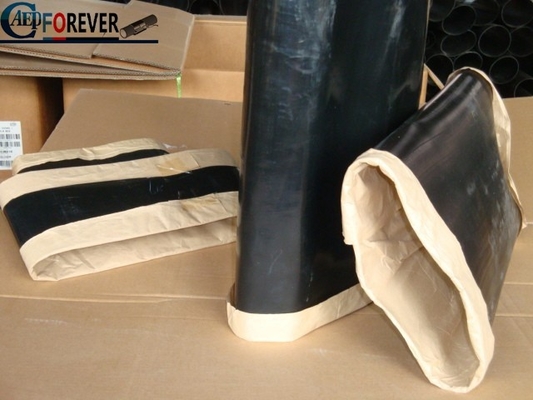

Closed-type Heat Shrink Sleeves
Heat Shrinkable Tubular Sleeves (Forever HSS )
2.1 Product profile

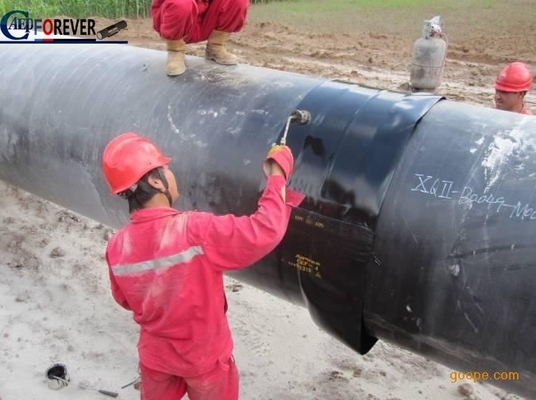

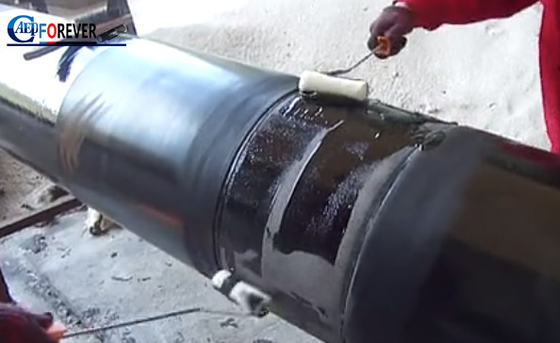

Heat Shrinkable Tubular Sleeves (Forever HSS ) consist of a cross-linked polyolefin backing, coated with an adhesive which effectively bonds to steel substrates and common pipeline coatings including polyethylene and fusion bonded epoxy. Tubular type sleeves are installed before joining the pipe ends by sliding the coat from a free end of the pipe onto the area to be coated. It is designed for corrosion protection of flanges, casings, bell and spigot joints and other high profile couplings.
2.2 Features & Benefits
Heat Shrinkable Tubular Sleeves are superior performance heat shrinkable products designed for corrosion protection of flanges, casings, bell and spigot joints and other high profile couplings.
Forever HSS provide great corrosion protection, Superior resistance to Cathodic Disbondment and excellent durability against abrasion and chemical attack. The result is effective, good performance of sealing, wide application, easy to operate and preheating temperature low (50 ℃) ,long term protection against corrosion.
● Tubular design allows for convenient and fast installation because less time is spent handling the sleeve and closure
● Cross-linked backing provides superior abrasion, mechanical and chemical attack resistance.
● High performance adhesive provides excellent resistance to Cathodic Disbondment to ensure long-term corrosion protection
| Product properties | ||
| Property | Test Method | Typical Value HT 60 |
| Radiation crosslinking PE Backing | ||
| Tensile strength | ASTM D 638 | 3200psi (22MPa) |
| Elongation | ASTM D 638 | 550% |
|
Thermal ageing |
ASTM D 638 |
420% |
| Hardness, Shore D | ASTM D 2240 | 52 |
| Shrink force | ASTM D 638, 150°C (302°F) | 43psi |
| Dielectric strength at 23°C | ASTMD 149 | 825volts/(33KV/mm) |
| Moisture absorption | ASTM D 570 | 0.05% |
| Hot Melt Adhesive | ||
| Softening point | ASTM E 28 | 105°C (221°F) |
|
Lap shear |
ASTM D 1002 |
196psi (1.35N/mm2) @23°C (73°F) |
| Installed Sleeve | ||
|
Peel to primer @23°C |
ASTM D 1000 |
130N/cm |
| Cathodic disbandment |
ASTM G 42, 30 days |
8mm @ 65°C (149°F) |
| Hot water immersion | ASTM D 870, 120 days @Tmax | no delamination no blisters or water ingress |
|
Resistance to thermal ageing |
EN 12068, Class C 80 |
|
| Low temperature flexibility | ASTM D 2671-C | -25°C (-13°F) |
| Impact resistance |
ASTM G 14 |
66 in-lbs |
| Penetration resistance |
ASTM G 17, |
no holidays @10KV |
| Holiday detection at 5 kV/ mm + 5 kV | EN 12068 ,Class C | no holiday |
| Epoxy Primer | ||
|
Specific Gravity @ 23℃-A |
ASTM D1963 |
≥ 1.5 |
| Shelf life | - | 2 Years |
| Color(Mixed) | - | Black |
