2PE Heat Shrink Sleeves With Cross Linked PE Backing And Hot Melt Adhesive
| Place of Origin | China |
|---|---|
| Brand Name | FOREVER |
| Certification | ISO |
| Model Number | wrap tape |
| Minimum Order Quantity | 1 ton |
| Delivery Time | 8 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 5000 sets/week |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Materials | HDPE | Adhesive | Hot Melt Adhesive |
|---|---|---|---|
| Type | 2PE | Backing | Cross-linked PE |
| Fuction | Joint Corrosion Protection | Thickness | 2.0mm,2.5mm,2.8mm |
| Width | 450mm,500mm,550mm,600mm | Core Features | Heat Shrink |
| Standard | EN12068 | Matched | Closure Patch And Epoxy Primer |
Product Description
2PE Corrosion protective heat-shrinkable sleeve

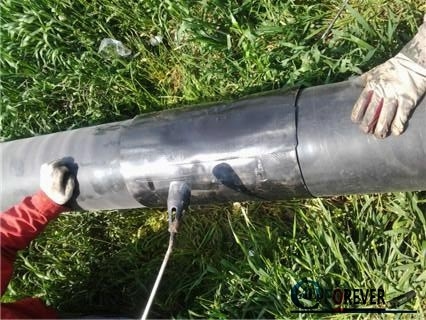

2 PE Wraparound sleeve is designed for corrosion protection of buried and exposed pipelines operating up to
60°C. 2 PE Wraparound sleeve consists of a crosslinked polyolefifi n backing,coating with a technologically advanced corrosion protective
adhesive, which effectively bonds to the steel substrate and common pipeline coatings including polyethylene and fusion bonded epoxy
2PE heat shrinkable straps Features & Benefits
• Unique adhesive technology allows for lower installation temp pre-heats without epoxy
• Products are available in various configurations to meet project installation requirements
• High stress strength adhesives pass Shear Test at maximum operating temperature
• The same pre-heat temperature with or without epoxy minimizes installation procedure issues
●Just-in-time customized lengths allow bulk rolls to be field cut top protect any pipe size,more Flexibility on the Job Site.

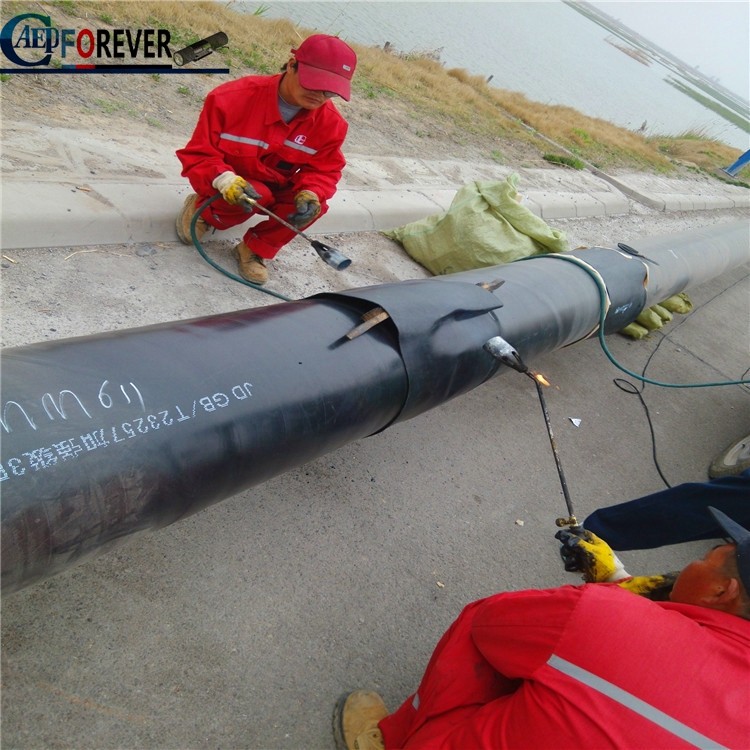

●Open sleeve configuration allows the product to be applied after the pipeline has been welded and cleaned.
Model: HSS Ø 426mm/ 500mm/ 2.5mm
HSS -------Heat shrinkable straps
500mm -----Width of sleeves (as supplied)
Ø 426mm ----Joint or pipeline Diameter
Heat Shrinkable Tapes Features & Benefits;
The product is packaged in convenient rolls with various widths protect and repair pipelines, fittings, bends, elbows and other irregular configurations.
Cross-linked backing provides superior abrasion, mechanical and chemical attack resistance.High performance adhesive provides excellent resistance to Cathodic Disbondment to ensure long-term corrosion protection.
Specification
Width: 100mm,150mm,200mm,250mm,300mm,350mm
Length: 15m,20m,25m,30m,
Thickness: 2.0mm, 2.5mm, 3.0mm. 37.5,19.5 150
The Size can be ordered according to customers’ demands .
| Property | Typical Value | Test Method |
| HST 60 | - | |
| Operating Temperature | Up to 60℃ | - |
| Backing | ||
| Tensile Strength | 23.20 MPA | ASTM D-638 |
| Elongation at Break | 650% | ASTM D-638 |
| Hardness, Shore D | 50 | ASTM D-2240 |
| Dielectric Strength | 32 Kv/mm | ASTM D-149 |
| Water Absorption | ＜0.1% | ASTM D-570 |
| Volume Resistivity | 2.5 x 1018 ohm.cm | ASTM D-257 |
| Adhesive | ||
| Property | Typical Value | Test Method |
| HST 60 | ||
| Softening Point | 90℃ | ASTM E-28 |
| Lap Shear | 2.3MPA @23℃ | ISO 21809 |
| Installed Sleeve | ||
| Property | Typical Value | Test Method |
| HST 60 | ||
| Peel to Steel | 145N/cm@23℃ | ASTM D 1000 |
| Cathodic Disbondment | ＜15 mm rad@23℃ | DIN EN 12068 |
| Impact Resistance | ＞ 15 J | DIN EN 12068 |
| Indentation Resistance | ＞1.0 mm@65℃ | DIN EN 12068 |
| Width | 225 mm,300 mm,450mm,500mm,900mm or others | |
