High Shear Strength 3 LPE Heat Shrinkable Wrap Around Sleeves
| Place of Origin | China |
|---|---|
| Brand Name | Forever |
| Certification | ISO manager system certificates |
| Model Number | HST 80 |
| Minimum Order Quantity | 1 pcs |
| Price | negotiation |
| Packaging Details | Plastic bag +carton + pallet |
| Delivery Time | 2 weeks |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 1000 rolls per day |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | 3 LPE Heat Shrinkable Wrap Around Sleeves | Construction System | 3 LPE |
|---|---|---|---|
| Epxoy Primer | Solvent-free Two-component | Film | Radiation Cross-linked, High Density Polyethylene Film |
| Adhesive | High Shear Strength Hot-melt Copolymer Adhesive | Application | Steel Pipe Corrosion Protection |
Product Description
The heat shrinkable sleeve is made of radiation crosslinked high-density polyethylene substrate and special sealing adhesive. It has the characteristics of excellent mechanical damage resistance, good sealing and long service life. The heat shrinkable opening sleeve is widely used in steel pipe network engineering in petroleum, natural gas, chemical industry, urban construction and other industries to provide a long-term excellent and reliable anti-corrosion protection system for the position where the pipeline needs to be repaired for anti-corrosion.
Product advantages
It has the advantages of flexible and convenient use, excellent adhesion performance, high strength, wear resistance, environmental stress resistance, heat aging resistance, UV resistance, high dielectric strength and acid and alkali corrosion resistance.
● Cross-linked backing
Provides superior abrasion, mechanical and chemical attack resistance,great corrosion protection,
● With a separate closure.

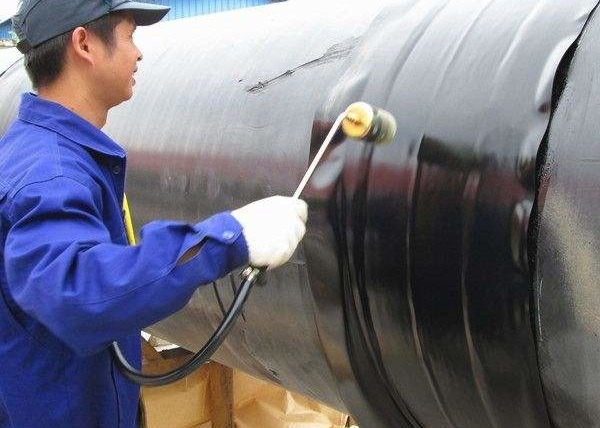

Open type sleeves allows the product to be applied after the pipeline has been welded and cleaned.
● Jumbo Rolls
Just-in-time customized lengths allow bulk rolls to be field cut top protect any pipe size
● Widely temperature range
Meet the requirements of different pipeline operating temperatures,
50 Degree, HT60 Degree HT80 Degree
HT120 Degree HT140 Degree

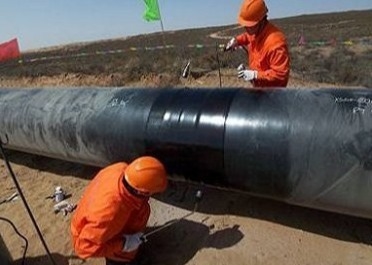

HST 80 superior performance heat shrinkable products designed for corrosion protection on field applied girth-weld joints of buried and exposed steel pipelines operating up to 80°C.
| Item | Test Method | Typical Value HT 80 |
| Radiation crosslinking PE Backing | ||
| Tensile strength | ASTM D 638 | 3200psi (22MPa) |
| Elongation | ASTM D 638 | 550% |
|
Thermal ageing 1) 150°C 21d elongation 2) Tmax +20°C 100d E100/E70 |
ASTM D 638 EN 12068 |
420% 1.08 |
| Hardness, Shore D | ASTM D 2240 | 52 |
| Shrink force | ASTM D 638, 150°C (302°F) | 43psi |
| Dielectric strength at 23°C | ASTMD 149 | 825volts/(33KV/mm) |
| Moisture absorption | ASTM D 570 | 0.05% |
| Hot Melt Adhesive | ||
| Softening point | ASTM E 28 | 125°C (257°F) |
|
Lap shear
|
ASTM D 1002 EN 12068, @ 10 mm (0.40")/min. |
435psi (3.00N/mm2) @23°C (73°F) 26psi (0.17N/mm2) @80°C (176°F) |
| Installed Sleeve | ||
|
Peel to primer @23°C @Tmax |
ASTM D 1000
|
113N/cm 15N/cm |
| Cathodic disbandment |
ASTM G 42, 30 days EN12068 Class C @23°C @80° |
8mm @ 65°C (149°F) 6mm 10mm |
| Hot water immersion | ASTM D 870, 120 days @Tmax | no delamination no blisters or water ingress |
|
Resistance to thermal ageing(100d/100°C) Peel strength layer to layer P100/PT Peel strength to pipe surface P100/PT |
EN 12068, Class C 80 |
3.3 3.7 |
| Low temperature flexibility | ASTM D 2671-C | -25°C (-13°F) |
| Impact resistance |
ASTM G 14 EN 12068, class C |
96 in-lbs >15J no holiday |
| Penetration resistance |
ASTM G 17, EN 12068, Class C |
no holidays @10KV >0.6mm @ 80°C(176°F) |
| Holiday detection at 5 kV/ mm + 5 kV | EN 12068 ,Class C | no holiday |
|
Epoxy Primer Specific Gravity @ 23℃-A -B |
ASTM D1963 |
≥ 1.5 /＜1.0 |
Service Life: More than 30 years
Shelf Life: 2 years
