UV Resistant Shrinkable Field Joint Coatings heat Shrink Wrap Tape
| Place of Origin | CHINA |
|---|---|
| Brand Name | Forever |
| Certification | AN ISO 9001:2015,ISO45001:2018 & ISO14001:2015 CERTIFIED COMPANY |
| Model Number | 2PE HSS |
| Minimum Order Quantity | 1 Roll |
| Price | 100 |
| Packaging Details | 1 ROLLS ONE BOX |
| Delivery Time | 7-14 days |
| Payment Terms | T/T |
| Supply Ability | 2000 Rolls Each Day |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Compatibility | 3LPE/DFBE/FBE/CTE | Installation | Easy And Fast Installation |
|---|---|---|---|
| Uv Resistance | Excellent UV Resistance | Thickness | 1.5-3.0 Mm |
| Chemical Resistance | Resistant To Most Chemicals And Solvents | Material | Shrinkable Polymer Materials |
| Adhesion | Excellent Adhesion To Steel | Adhesive Materials | Mastic |
Product Description
Product Description:

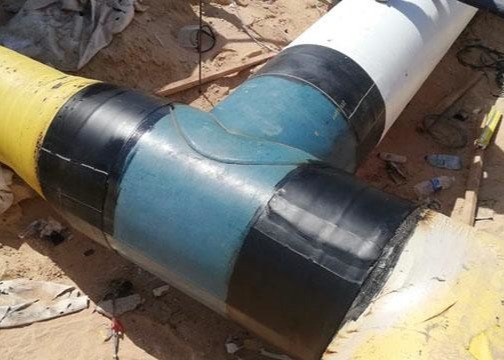

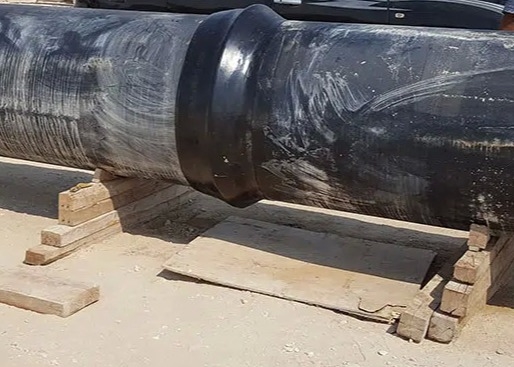

Our 2-layer Mastic Heat Shrinkable Sleeve System is specially designed and engineered for use in the corrosion protection of field girth weld joints. The system is perfect for water supply or gas distribution and transmission networks. It is particularly suited for use in low and middle shear, as well as low stress environments in moderate climates.
The Mastic Heat Shrinkable Tape is compatible with standard pipe coatings, which means that it can be used to coat bare, replacement pipe sections, and large radius bends. The system is designed to be applied with minimum preheating, which makes it ideal for large diameter water pipes.
The first layer of our Mastic Heat Shrinkable Sleeve System is a low preheat, middle shear strength, half-rigid mastic sealant. The second layer consists of an extruded radiation cross linked heat shrinkable high density polyethylene backing with TIP (Temperature Indicator Pattern).
Features:
Superb Resistance to Cathodic Disbondment
This product has remarkable ability to resist cathodic disbondment, ensuring that your pipeline remains intact and in optimal condition for extended periods of time. You can rely on this product to offer exceptional protection against rust and other forms of corrosion
Long-Lasting Corrosion Protection
This product also boasts long-term corrosion protection, meaning that your pipeline will remain free from rust and other corrosion-related damages for an extended period of time. With this product, you can rest easy knowing that your most important infrastructure is in top-notch condition at all times.
Non-Hardening and Non-Cracking Technology
This innovative product is designed with non-hardening and non-cracking technology, further enhancing its ability to resist damage and remain in top condition for long periods. This makes it a reliable choice for pipelines that are exposed to harsh conditions, as well as those that undergo temperature fluctuations and frequent exposure to moisture.
Fast Application and High Performance
This product is also known for its fast application and high performance, making it an incredibly convenient and effective choice for pipeline maintenance. Whether you're dealing with an emergency situation or simply need to keep your pipelines in optimal condition, this product is sure to get the job done quickly and effectively.
Excellent Chemical Resistance
In addition to its impressive resistance to cathodic disbondment and corrosion, this product also boasts exceptional chemical resistance. It can withstand exposure to a wide range of chemicals, making it an excellent choice for pipelines that carry hazardous materials or that are located in harsh environments.
Excellent Resistance to Shear Forces
This product is engineered to provide remarkable resistance to shear forces, making it a great choice for pipelines that are subject to frequent movement and vibration. Its superior mechanical protection and moisture resistance make it a reliable option for pipelines in a variety of settings.
Compatibility with Most Common Pipeline Coatings
Finally, this product is designed to be compatible with most of the common pipeline coatings, including PE, PP, FBE, 3LPE, and 3LPP, among others. This makes it a versatile and adaptable choice for pipeline maintenance, regardless of the specific materials that are already in place.
Technical Data Sheet
| Property | Test temp. | Unit |
HST 60 Tmax 65 °C |
HST 80 Tmax 85 °C |
Test method |
| Tensile Strength | 23 °C | MPA | ≥23 | ≥23 | ASTM D-638 |
| Elongation at Break | 23 °C | % | ≥500 | ≥500 | ASTM D-638 |
| Hardness, Shore D | 23 °C | D | ≥52 | ≥52 | ASTM D-2240 |
| Dielectric Strength | 23 °C | Kv/mm | ≥32 | ≥32 | ASTM D-149 |
| Water Absorption | 23 °C | % | ≤0.1 | ≤0.1 | ASTM D-570 |
| Volume Resistivity | 23 °C | ohm.cm | ≥1.0X1018 | ≥1.0X1018 | ASTM D-257 |
| Thickness | — | mm | ≥2.0 | ≥2.0 | ISO 21809-3 Annex B |
| Width | - | mm | 100 mm to 800 mm | ASTM D 1000 | |
| Ring ball Softening Point for Adhesive | 23 °C | °C | ≥90 | ≥121 | ASTM E-28 |
| Holiday detection at 5 KV/ mm + 5 KV | — | — | No holiday | No holiday | ISO 21809-3 Annex C |
| Impact resistance (holiday detection at 5 KV/mm + 5 KV) | 23 °C | J/mm | ≥5 | ≥7 | ISO 21809-3 Annex D |
|
Indentation resistance: Pres- sure and residual thickness |
23 °C | N/mm2 | ≥1.0 | ≥10.0 |
ISO 21809-3 Annex E |
| mm | ≥0.60 | ≥1.0 | |||
| Tmax | N/mm2 | ≥1,0 | ≥1,0 | ||
| mm | ≥0,60 | ≥1,0 | |||
| Cathodic disbondment at 28 days | 23 °C | mm | ≤10 | ≤15 | ISO 21809-3 Annex G |
| Tmax | mm | ≤20 | ≤20 | — | |
| Peel strength to pipe surface and plant applied coating | 23 °C | N/mm | ≥1.0 | ≥3.0 | ISO 21809-3 Annex H |
| Tmax | N/mm | ≥0.10 | ≥0.20 | ISO 21809-3 Annex H | |
| Peel strength to pipe surface and plant applied coating after 100-day hot-water immersion test at Tmax limited |
23 °C |
P100/P0 |
≥0.75 |
≥0.75 |
|
| Lap shear strength at 10 mm/ min | 23 °C | N/mm2 | ≥0.10 | ≥5.0 | ISO 21809-3 Annex J |
| Tmax | N/mm2 | ≥0.01 | ≥0.10 | ||
| Thermal ageing resistance (aged at Tmax + 20 °C) |
ISO 21809-3 Annex M |
||||
|
Elongation at break E100/E0 E100/E70 |
≥0.75 ≥0.80 |
≥0.75 ≥0.80 |
|||
|
Peel strength to pipe surface P100/P0 P100/P70 |
23 °C |
- |
≥0.75 ≥0.80 |
≥0.75 ≥0.80 |
|
Applications:
The packaging details for this product are 1 roll per box, and the delivery time is 7-14 days. The payment terms for this product are T/T, and the supply ability is 2000 rolls each day. This product is specifically designed for joint corrosion protection, and its low water absorption makes it ideal for outdoor use.
The Forever 2PE HSS is easy to install and provides fast installation. Its shrink ratio of 30% or others ensures that it fits tightly on the joint, providing a long-lasting and durable solution.
This product is perfect for a variety of application occasions and scenarios, including:
- Oil and gas pipelines
- Water pipelines
- Chemical pipelines
- Power plants
- Construction sites
The low temperature preheat shrinkable tape ensures that the installation process is quick and efficient, making it perfect for use in time-sensitive projects. The Forever 2PE HSS is a reliable and cost-effective solution that provides long-term protection against joint corrosion.
Packing and Shipping:
Product Packaging:
- The Field Joint Coatings - Shrinkable materials product will be packaged in a sturdy cardboard box to ensure safe handling and transportation.
- The box will be clearly labeled with the product name, quantity, and handling instructions.
- The shrinkable materials will be securely packed inside the box using appropriate cushioning materials to prevent any damage during transit.
Shipping:
- The Field Joint Coatings - Shrinkable materials product will be shipped via standard ground shipping unless expedited shipping is requested.
- Shipping costs will be calculated based on the weight of the package and the destination address.
- The estimated delivery time will be provided at the time of purchase and may vary depending on the shipping method and destination.
- The customer will be provided with a tracking number to monitor the shipment's progress.
