100mmX450mm Closure Patch of Heat Shrinkable Sleeves For Pipe Joint Coating
| Place of Origin | China |
|---|---|
| Brand Name | FOREVER |
| Certification | ISO |
| Model Number | open-type |
| Minimum Order Quantity | 1 ton |
| Delivery Time | 8 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 5000 sets/week |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Materials | HDPE | Adhesive | Hot Melt Adhesive |
|---|---|---|---|
| Type | 3LPE | Backing | Cross-linked PE |
| Fuction | Joint Corrosion Protection | Thickness | 2.0mm,2.5mm,2.8mm |
| Width | 450mm,500mm,550mm,600mm | Core Features | Heat Shrink |
| Standard | EN12068 | Matched | Closure Patch And Epoxy Primer |
Product Description
FOREVER wraparound heat shrinkable sleeve (HSS)

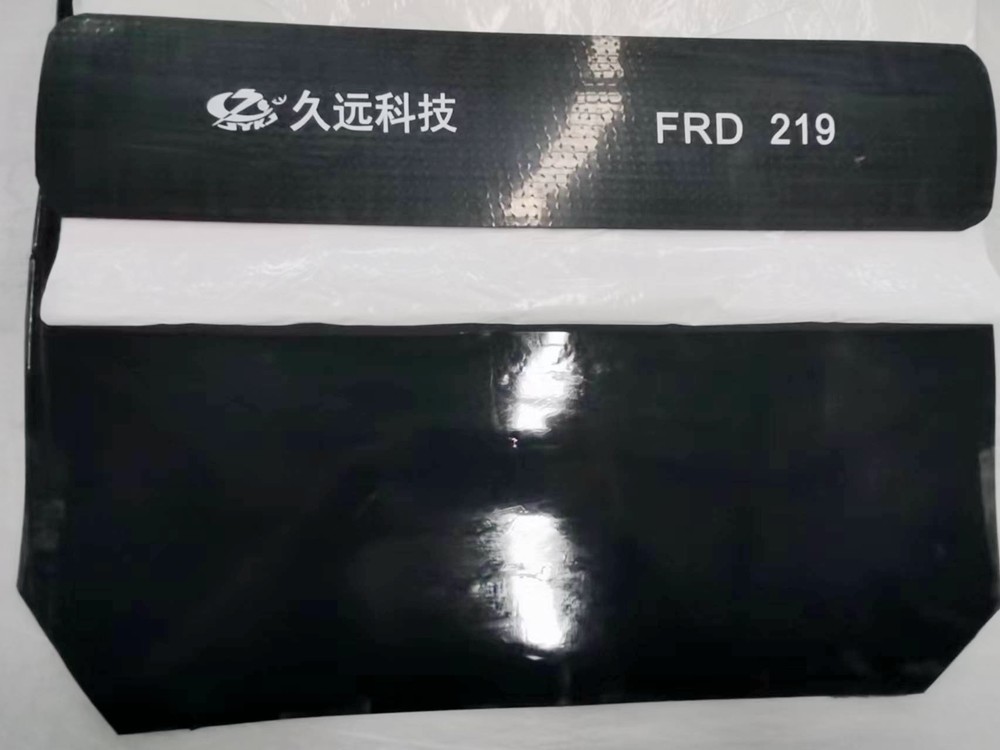

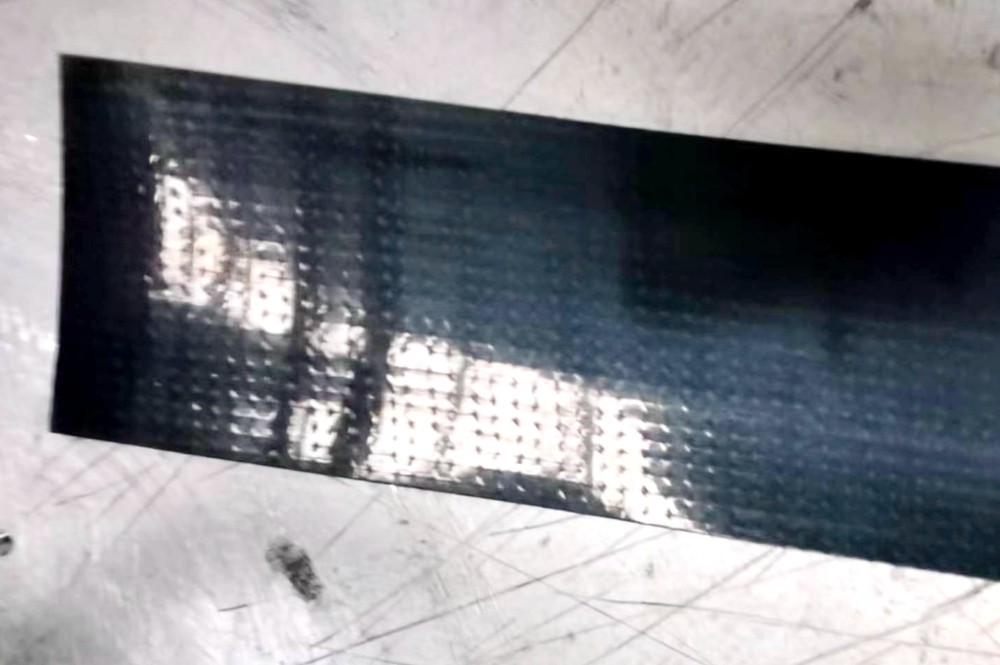

Repair Patch
Repair Patch is composed of fiber inserted cross-linked polyolefin backing and heat sensitive adhesive.
This product has superior adhesion and sealing up effect as well. It will be able to expect reliable corrosion prevention and shear forces and abrasion resistance.
It can be used installed quick with no special tools and skills required.
Size: 1.6mm-2.0MM x150mm x10m (up to 450mm width)
Code: FRP
Product Description
Heat shrink sleeves for three layer pipelines Features:
Excellent adhesion to steel pipe
Long term corrosion protection , Resistant to UV
High chemical resistance under service temperature.
Outstanding electric property and permanent adhesion.
Perfect abrasion resistance performance

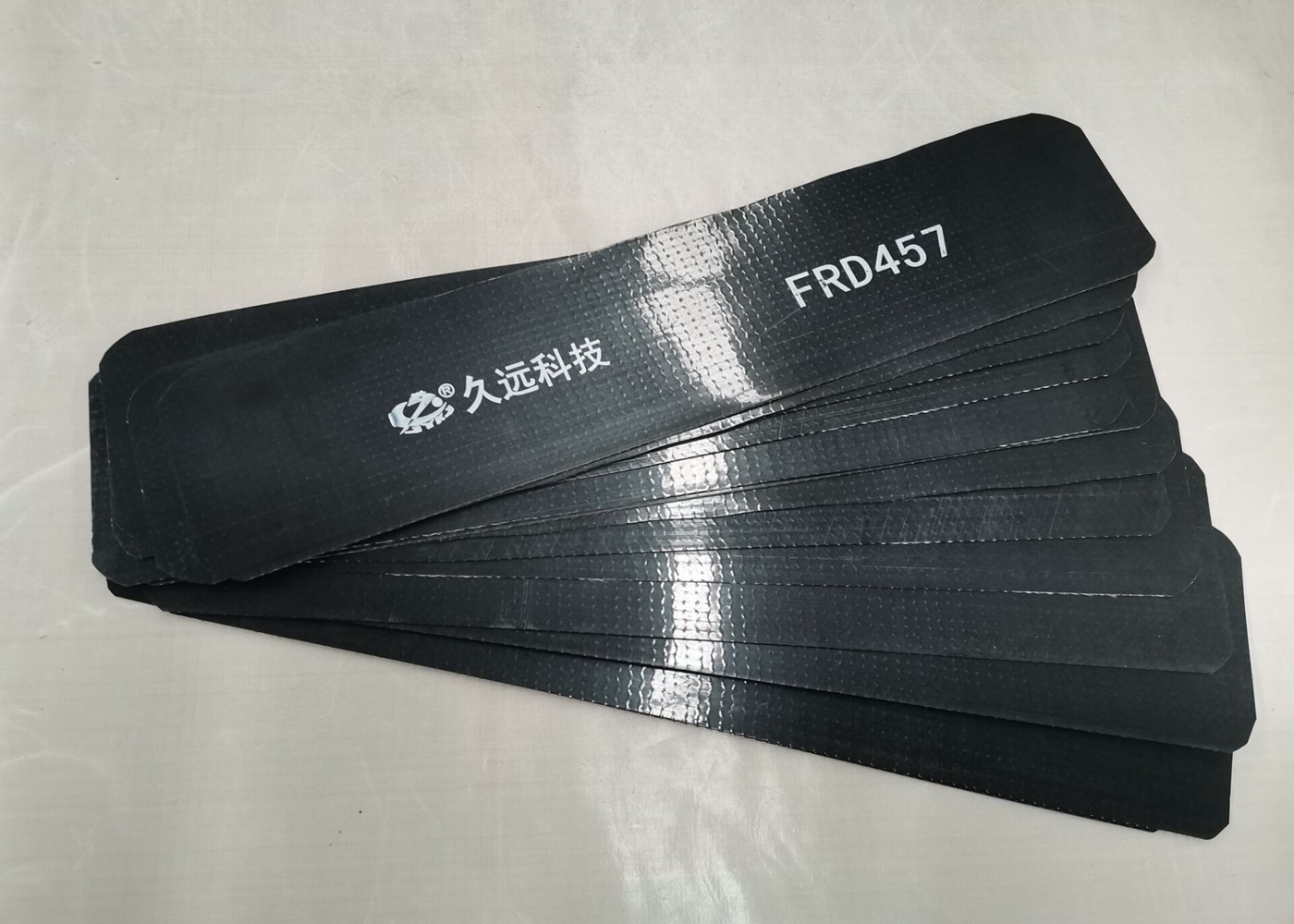

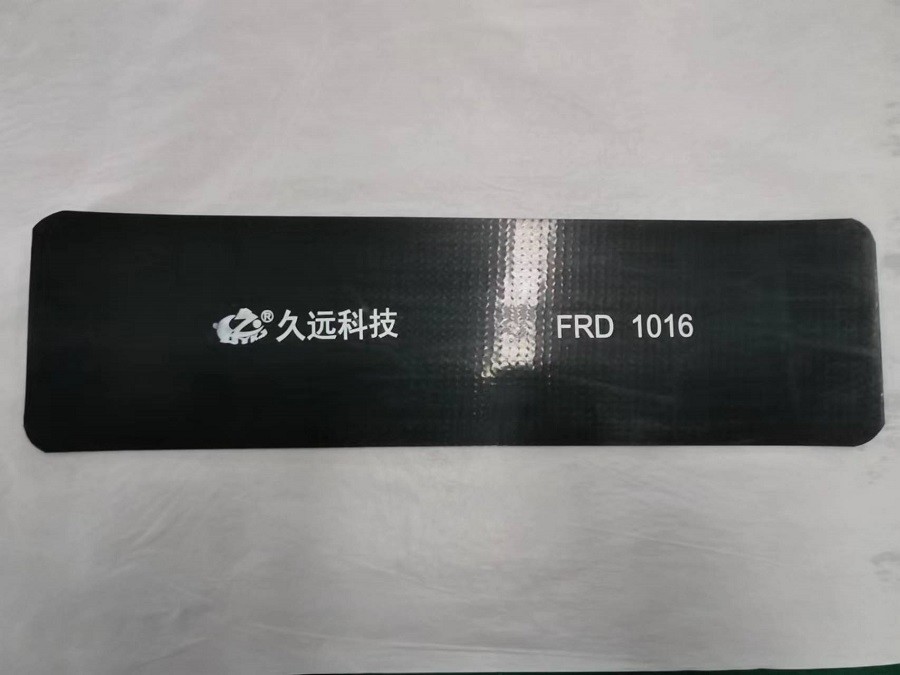

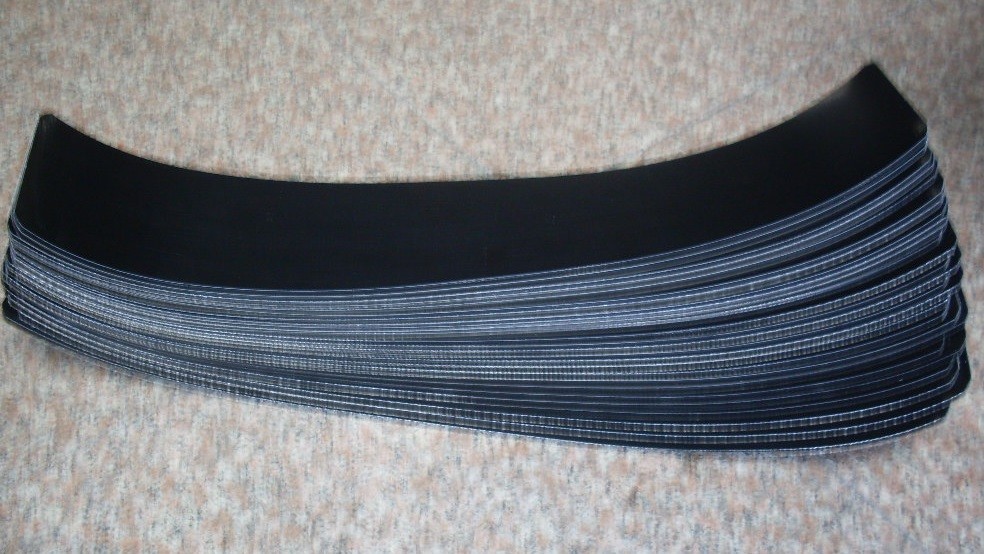

Note:
1) Closure patch length and thickness are equal to sleeve axial length and thickness, respectively.
Closure patch width:
100 mm for pipe diameter Φ168 ～Φ355
150 mm for pipe > Φ355.
2) Custom-made is available to meet any customer special demand.
| Product properties | ||
| Property | Test Method | Typical Value HT 60 |
| Radiation crosslinking PE Backing | ||
| Tensile strength | ASTM D 638 | 3200psi (22MPa) |
| Elongation | ASTM D 638 | 550% |
|
Thermal ageing |
ASTM D 638 |
420% |
| Hardness, Shore D | ASTM D 2240 | 52 |
| Shrink force | ASTM D 638, 150°C (302°F) | 43psi |
| Dielectric strength at 23°C | ASTMD 149 | 825volts/(33KV/mm) |
| Moisture absorption | ASTM D 570 | 0.05% |
| Hot Melt Adhesive | ||
| Softening point | ASTM E 28 | 105°C (221°F) |
|
Lap shear |
ASTM D 1002 |
196psi (1.35N/mm2) @23°C (73°F) |
| Installed Sleeve | ||
|
Peel to primer @23°C |
ASTM D 1000 |
130N/cm |
| Cathodic disbandment |
ASTM G 42, 30 days |
8mm @ 65°C (149°F) |
| Hot water immersion | ASTM D 870, 120 days @Tmax | no delamination no blisters or water ingress |
|
Resistance to thermal ageing |
EN 12068, Class C 80 |
|
| Low temperature flexibility | ASTM D 2671-C | -25°C (-13°F) |
| Impact resistance |
ASTM G 14 |
66 in-lbs |
| Penetration resistance |
ASTM G 17, |
no holidays @10KV |
| Holiday detection at 5 kV/ mm + 5 kV | EN 12068 ,Class C | no holiday |
| Epoxy Primer | ||
|
Specific Gravity @ 23℃-A |
ASTM D1963 |
≥ 1.5 |
| Shelf life | - | 2 Years |
| Color(Mixed) | - | Black |
