FOREVER Mastic Filler Repair Patch Melt Stick Of Anti Corrosion Coating Layer
| Place of Origin | China |
|---|---|
| Brand Name | FOREVER |
| Certification | ISO |
| Model Number | Repair stick |
| Minimum Order Quantity | 1 ton |
| Delivery Time | 8 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 5000 sets/week |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Materials | Hot Melt Adhesive | Type | 3LPE |
|---|---|---|---|
| Fuction | Repair Pipeline Coating | Size | 25mmX30cm |
| Color | Black | Core Features | Heat Shrink |
| Standard | EN12068 | Matched | Closure Patch And Heat Shrink Sleeves |
Product Description
FOREVER Repair patch, Mastic Filler, Melt Stick
FOREVER REPAIR PATCH, MASTIC FILLER, MELT STICK
DESCRIPTION
Introduction
FOREVER pipeline coating repair products
are widely used from the field in which is the pipe coating damaged for a continuous stipendiary prevention effect.

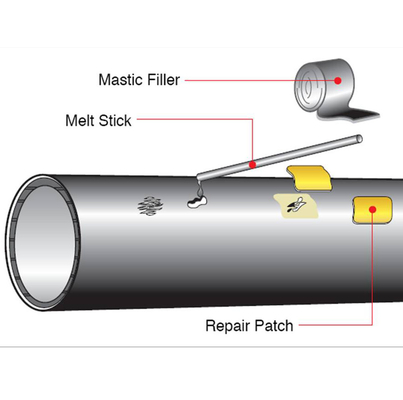

The Repair Patch, Mastic Filler and Melt Stick are the product.
It will be able to repair the damage which occurs from pipe transportation and load process effectively.

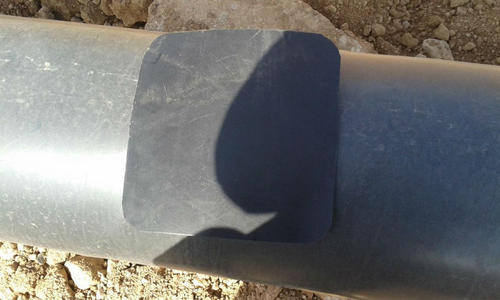

Repair Patch
Repair Patch is composed of fiber inserted cross-linked polyolefin backing and heat sensitive adhesive.
This product has superior adhesion and sealing up effect as well. It will be able to expect reliable corrosion prevention and shear forces and abrasion resistance.
It can be used installed quick with no special tools and skills required.
Size: 1.6mm-2.0MM x150mm x10m (up to 450mm width)
Code: FRP
Mastic Filler
Mastic Filler is used to fill larger voids and deep damaged coatings prior to the application of Repair Patch.
Size: 3.0mm 40mm 6m

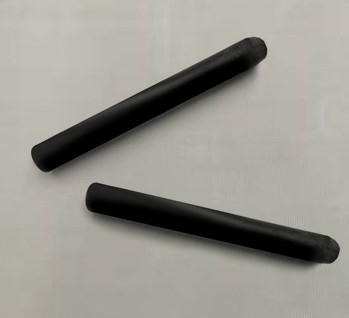

Melt Stick

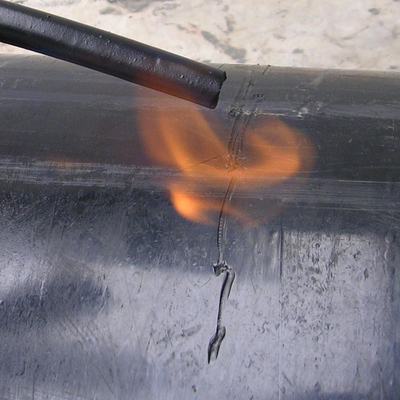

Melt Stick is composed of heat-activated with a stick form. This product is used the place where the pipe
surface repairs a small damage. It could be used as a filler material with Repair Patch.
Size: 10mm diameter 280mm length
| Product properties | ||
| Property | Test Method | Typical Value HT 60 |
| Radiation crosslinking PE Backing | ||
| Tensile strength | ASTM D 638 | 3200psi (22MPa) |
| Elongation | ASTM D 638 | 550% |
|
Thermal ageing |
ASTM D 638 |
420% |
| Hardness, Shore D | ASTM D 2240 | 52 |
| Shrink force | ASTM D 638, 150°C (302°F) | 43psi |
| Dielectric strength at 23°C | ASTMD 149 | 825volts/(33KV/mm) |
| Moisture absorption | ASTM D 570 | 0.05% |
| Hot Melt Adhesive | ||
| Softening point | ASTM E 28 | 105°C (221°F) |
|
Lap shear |
ASTM D 1002 |
196psi (1.35N/mm2) @23°C (73°F) |
| Installed Sleeve | ||
|
Peel to primer @23°C |
ASTM D 1000 |
130N/cm |
| Cathodic disbandment |
ASTM G 42, 30 days |
8mm @ 65°C (149°F) |
| Hot water immersion | ASTM D 870, 120 days @Tmax | no delamination no blisters or water ingress |
|
Resistance to thermal ageing |
EN 12068, Class C 80 |
|
| Low temperature flexibility | ASTM D 2671-C | -25°C (-13°F) |
| Impact resistance |
ASTM G 14 |
66 in-lbs |
| Penetration resistance |
ASTM G 17, |
no holidays @10KV |
| Holiday detection at 5 kV/ mm + 5 kV | EN 12068 ,Class C | no holiday |
| Epoxy Primer | ||
|
Specific Gravity @ 23℃-A |
ASTM D1963 |
≥ 1.5 |
| Shelf life | - | 2 Years |
| Color(Mixed) | - | Black |
